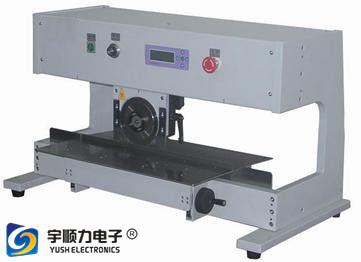

LCD Program Control PCB Depaneling Machine , High Efficiency
PCB depaneling with running type
1. Operator foolproof
2. Infrared protection
3. Calibration Blade Set
4. LCD program Control
PCB Depaneling Mchine Specification:
| Model | YSV-1A |
| PCB Cutting Length (mm) | 460/600/1000/1500 |
| Cutting Speed (mm/s) | 100/200/300/500 |
| Cutting Thickness (mm) | 0.6~3.5 |
| Power Supply | 110/220 V |
| Size (mm) | 770*510*450 |
| Weight (Kg) | 55 |
| Blade working life for metal (Year) | 0.5 |
| Blade working life for PCB (Year) | 1 |
| Guarantee (Year) | 1 |
| Delivery (Day) | 1 |
| Ability (Set) | 1000 |
| Min. Order (Set) | 1 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated
to high strength cutting, and excellent toughness, able to cut metal board.
PCB Depaneling Mchine Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
PCB Depaneling Mchine Feature:
1. Minimize the shearing stress to avoid micro-cracks of the solder joints.
2. Guiding device of the "V-CUT" of the PCB.
3. Ball bearing slideways for easy setting of the PCB edge guides.
4. Ball bearing slideways for easy setting of the height of the tabletop.
5.Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6. Cutters can be re-grinded .
7. The shape of the cutter can be customer made
