Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer

Name: Low Cut Stress PCB Depaneling Machine Adjustable Speed PCB Depanelizer
Brand: YUSH
Price: 38000 USD

Cheap Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer for sale

Brand Name : YUSH

Model Number : YSVJ-650

Certification : CE

Place of Origin : JUANGSU

MOQ : 1 set

Price : 38000-40000 USD

Payment Terms : D/P, Western Union, D/P, L/C, T/T

Delivery Time : 3 days

Packaging Details : Plywooden case

The use of voltage : 110/220VAC

scoreboard Thickness : 1.0-3.2mm

The scoreboard Speed : 0-400mm / s

Element height limit : 15mm

Host Dimensions : (L) 2600 * (W) 580mm * (H) 980mm

Special parts for ultra-high height up to : 70mm

Contact Now

Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer

1. Application: PCB board with a variety of length ≥100mm V-CUT groove.

2. Circuit boards can be cut length: infinite

3. Cutting speed: Max 28M / Min adjustable speed

4. Minimum cutting width: 8mm

5. Maximum cutting width 200mm Joint board

6. V-CUT groove joints distance must be greater than 1.5mm

Element height limit: 15mm

Specifications: Power: 250W

Input voltage: AC220V 50Hz

Weight: 120KG

Host Dimensions: (L) 2600 * (W) 580mm * (H) 980mm

Platform length: 1.2M

Conveyor Length: 1.2M

Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer

Product Tags:

pcb depanelizer

pcb separator machine

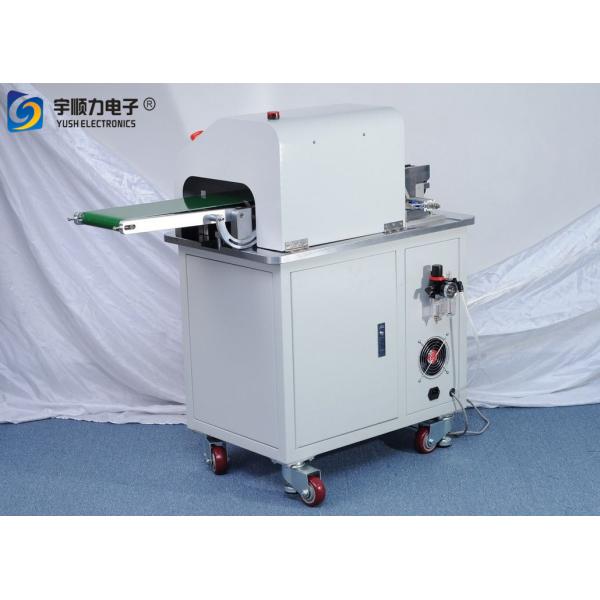

Low Cut Stress PCB Depaneling Machine , Adjustable Speed PCB Depanelizer Images
