no vibration resin substrate PCB Laser Depaneling Machine

Name: no vibration resin substrate PCB Laser Depaneling Machine
Brand: YUSH
Price: 1000 USD

Cheap no vibration resin substrate PCB Laser Depaneling Machine for sale

Brand Name : YUSH

Model Number : YSV-2A

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : USD1000

Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability : 300 sets/ month

Delivery Time : 3 ~7 working days

Packaging Details : Plywooden case

V-groove thickness : 0.2-2.0mm

Work principle : Upper circular blade moving to cut pcb

PCB thickness : 0.2-3.2mm

Lizer PCB length : Max 400mm,

Weight : 55KG

Power : 40W

Suitable for : V-cut PCB, LED strip, aluminum PCB

Contact Now

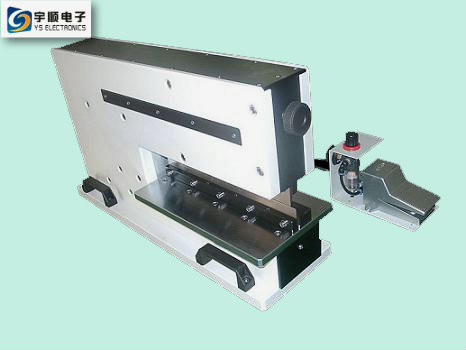

PCB V-groove Cutting Machine /automatic Aluminum PCBA Separator/laser pcb depaneling machine YSV-2A

no vibration resin substrate PCB Laser Depaneling Machine

specifications:

Model	YSV-1A
Max. PCB cutting length	460 or 600 mm(on request custom made)
PCB cutting thickness	0.6-3.5 mm
PCB cutting speed	100,200,300,500 mm/sec
Blade motion	upper circular blade moving automatically
Blade motive power operating mode	motor-driven
Power supply	110/220v
PCB cutting machine size	770510450mm
PCB cutting machine weight	55kg

Features:

1. Easy maintanance and operation
2. Low bending stress,no vibration
3. specially for resin substrate PCB with pre-scored V groove

4. safety use
5. Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
6. Effectively reduce stress and prevent solder point chap from PCB cutting.
7. PCB cutting speed can be adjusted by the rotary knob
8. PCB cutting stroke can be set free and setting value can be showed in LCD
9. Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
10. Optional PCB conveyor belt to remove finished PCB cut

no vibration resin substrate PCB Laser Depaneling Machine

If you are interseting in our product,please contact us!
